Schlage PS902 2 amp Power Supply

The Schlage / Von Duprin PS902 is a versatile 2-amp power supply designed to deliver consistent and reliable low-voltage power for various electronic access control devices, including electrified locks, electromagnetic locks, and card readers. It offers a field-selectable output of either 12V or 24V DC, allowing flexibility to meet specific system requirements. The unit operates on a universal input voltage range of 120 to 240V AC at 50/60 Hz, making it suitable for diverse installation environments. Its regulated and filtered DC output ensures the protection and optimal performance of connected devices.

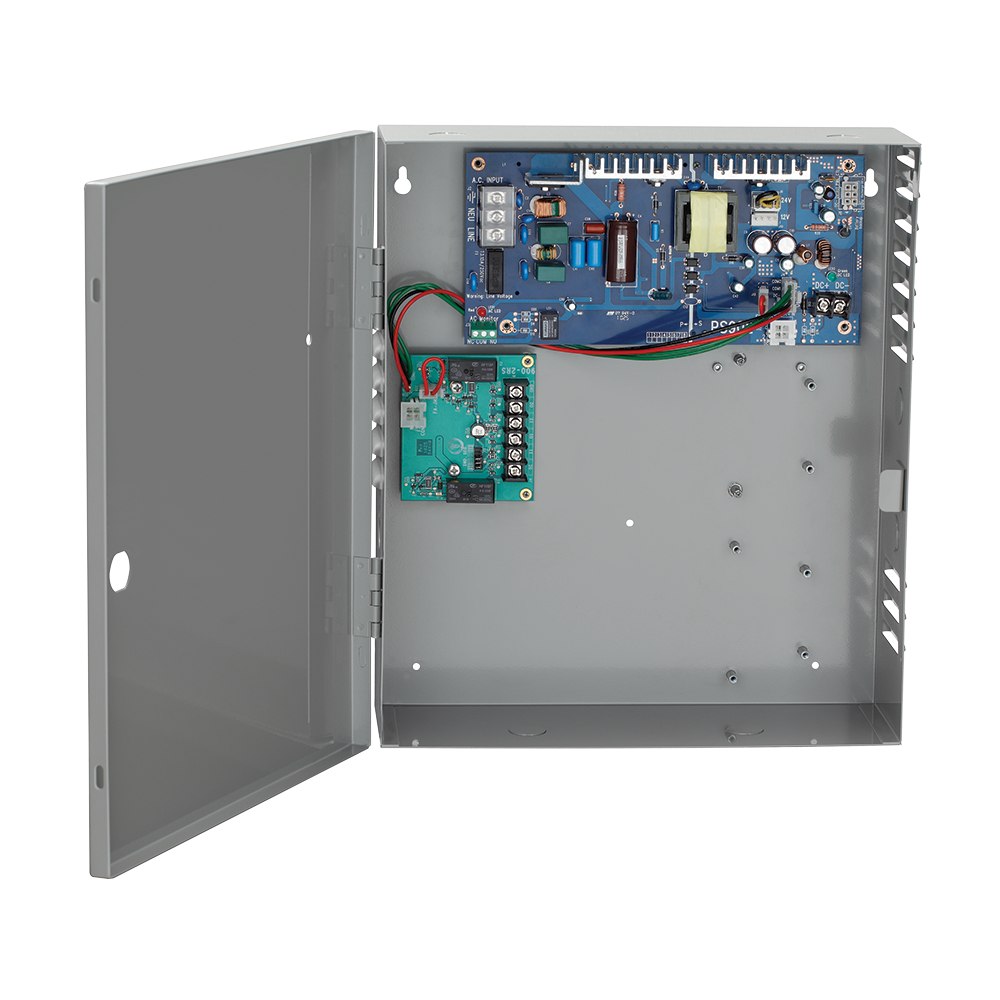

Designed with user convenience in mind, the PS902 features LED indicators that provide clear status updates for both AC input and DC output voltages. The enclosure, measuring 14 inches in height, 12 inches in width, and 4 inches in depth, is constructed with a gray baked-enamel finish and includes a hinged cover with lock-down screws for enhanced security and ease of access. Additionally, the power supply is compatible with various optional distribution boards, such as the 900-2RS, 900-2Q, and 900-4R, allowing for expanded functionality to suit specific application needs.

Model

• PS902: 2 amp Class 2 filtered and regulated power limited output

Input voltage

• 120/240 VAC, 50/60 Hz, universal input

Output voltage

• 12 or 24 VDC field selectable with jumper
• Switching supply, 5% regulation, 240Vpp max ripple
• DC output overload protection: current limited fold back circuit

Option boards

• 900-BB: Battery backup option board (installs on main board)
• 900-BBK: Battery backup kit (includes option board and two 7A/hour batteries)
• 900-FA: Emergency interface/fire alarm plug-in (integrates with fire alarm and is used to cut power in case of emergency).  Install on main or option board
• 900-2RS: 2 relay option board capable of individual or sequential operation for single and pair door applications
• 900-4R: 4 relay board; independently controlled, no timing or logic
• 900-4RL: 4 relay board with integrated logic; field programmable; individual or sequential operation for controlling security interlocks, auto operators, and time delay function
• 900-8F: 8 individually fuse protected outputs, giving the flexibility to power multiple devices and provides another layer of protection
• 900-8P: 8 PTC protected outputs with auto resettable fuses; 1.8A output (class 2)
• 900-KL: Key lock cover
• Option board connectors: 1 (see Configuration Options)
