DOREX F425T electronic lever locksets

DOREX F425T electronic lever locksets are 3-in-1 locks that allow users to access an area using a physical key, access code or RFID token for maximum flexibility.

The F425T is ideal for granting key-less access to rooms to employees and tenants. Perfect for offices, conference rooms, maintenance areas, laundry rooms and more.

Features:

• Conforms to ANSI/BHMA A156.5, Grade 2
• 3 Year limited mechanical warranty
• 1 Year limited electronic warranty

• For doors 1³⁄₈ to 2″ (35 to 51 mm) thick
• Non-handed
• Adjustable 2³⁄₈″ or 2³⁄₄″ (60 mm or 70 mm) backset
• Zinc alloy deadlatch, ¹⁄₂″ (12.7mm) throw
• Fits standard door preparations for cylinder and/or tubular locks; no additional holes or wiring required
• 5-pin Schlage “C” brass cylinder (2 keys)
  » Other keying options available
• Digital touch keypad, blue LED back-light
• RFID Protocol: MIFARE^TM 13.56 MHz (Classic 1K)
• 2 RFID cards included

Electronic Features:

• 50 individual user codes available
  » 25 programmable codes (4-8 digits)
  » 25 RFID tokens
• 4 renewable single use codes
• Auto Lock with delay
• Vacation Mode (disables keypad)
• Optional random screen keypad activation
• code to prevent number probing
• Double authorization mode (requiring user code + RFID token) for additional security
• Easy to program and pair RFID keys

Styles:

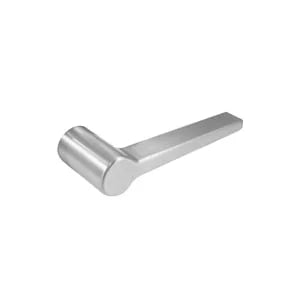

JN – Juno (Default)

C – Curved return*

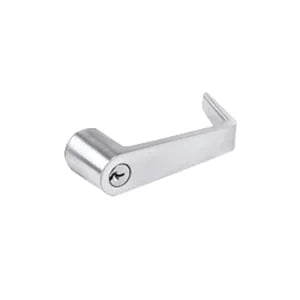

H – Standard return*

Finishes:

15
SATIN NICKEL

19
MATTE BLACK
